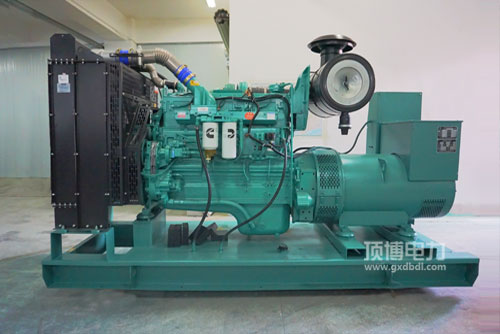

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用起驱力气油经济增长性好: 高级的气油抑制平台，代表性的STC、ESTC 等级分类抑制平台，特有设汁的活塞杆顶面助燃室，低压噴射气油，做好做雾化，助燃做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用发起机瞬态特性比较好: 完全的发起机总布局设计制作，匹配康明斯差异化的的EFC平台，保持精准更高，死机时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用打火机升瓦数高: 综合设置紧凑型.形壮摆放合理合法，执行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50够满足我们非路面3时候及北美洲Tier2. Tier 3减排相关法律法规标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理应得性好， 发起机操作及定期检查清洁生活便利，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率使用范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯电站用打着机的基本特征：重量小， 解压缩变高， 格栅板气供暖，更易打火，移动式车载电子开关电源的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起行为型号查询	通用工作效率(kW)Prime Power	紧急工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
